Home > Our products > End fittings > Ball socket - Thread M6

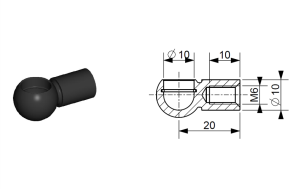

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
Traceparts
Print

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 072421
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
18 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Plastic
End fitting type
Ball socket
Length
18 mm
Thread depth
11 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.30 € HT Piece
1.56 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 072421-110
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
18 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Plastic
End fitting type
Ball socket
Length
18 mm
Thread depth
11 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
2.02 € HT
2.42 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.21 € HT Piece
1.45 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 07242S
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Plastic
End fitting type
Ball socket
Length
20 mm
Thread depth
11 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
2.81 € HT Piece
3.37 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092216
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Steel
End fitting type
Ball socket
Length
20 mm
Thread depth
10 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
2.02 € HT
2.42 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
3.51 € HT Piece
4.21 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092220
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Steel
End fitting type
Ball socket
Length
25 mm
Thread depth
12 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
4.74 € HT Piece
5.69 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092220-37
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
37 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Steel
End fitting type
Ball socket
Length
37 mm
Thread depth
15 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
18.42 € HT Piece
22.10 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092220I
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Stainless steel
End fitting type
Ball socket
Length
25 mm
Thread depth
12 mm
Related products
The items below are suitable for your selected product
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
15.16 € HT
18.19 € TTC
Available
-
+
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
15.46 € HT
18.55 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
3.05 € HT Piece
3.66 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092221
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Steel
End fitting type
Ball socket
Length
20 mm
Thread depth
10 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
18.60 € HT Piece
22.32 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092221I
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Stainless steel
End fitting type
Ball socket
Length
20 mm
Thread depth
10 mm
Related products
The items below are suitable for your selected product
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
15.16 € HT
18.19 € TTC
Available
-
+
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
15.46 € HT
18.55 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092720
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Plastic
End fitting type
Ball socket
Length
25 mm
Thread depth
11 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092722
Threading
M6
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
Material
Plastic
End fitting type
Ball socket
Length
20 mm
Thread depth
13 mm
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+
